Tweetop Home system includes a broad range of surface heating control units.

Room 230 Volt thermostats cooperating with the 230 Volt actuators can be used as regulatory elements in surface heating systems. They supplement the distributor's throttle valves and weather-compensation built into the heat source. The actuators are mounted on the distributor's return beam in the upper portion of the valves - directly or through a junction box.

Floor heating systems can also be combined with heating circuits working on the so-called high parameters, provided a mixing set is used.

Product range

Tweetop system offer includes a complete range of standard and programmable controllers available in wired and radio-controlled versions, as well as an efficient pumping - mixing set.

Wired 230 Volt battery powered thermostats
Thermostat Tweetop 900
  • programming based on weekly cycle
  • 3 types of in room temperature set up - comfortable, economical, minimal
  • 9 programs for engagement timing in 24 hours cycle
  • keyboard lock function
  • controls up to 20 actuators
  • surface mounting
  • available as a set with floor temperature sensor included
  • powered by 2 AA+ batteries
Thermostat Tweetop 1000
  • manual temperature setting
  • 3 types of in room temperature set up - comfortable, economical, minimal
  • easy to read display
  • surface mounting
  • controls up to 20 actuators
  • available as a set with floor temperature sensor included
  • possibility of an additional external sensor connection
  • powered by 2 AA+ batteries
Tweetop connection box
  • controls up to 5 thermostats and 20 actuators (MASTER strip)
  • built-in function of controlling the pump and / or heat source
  • possibility of expansion of the module(s) with extra (SLAVE) modules, each SLAVE module controls 6 thermostats and 24 actuators
  • maximum power of the connected actuators for the MASTER / SLAVE modules is 200W
TS actuator + EV 230
  • controls up to 5 thermostats and 20 actuators (MASTER strip)
  • built-in function of controlling the pump and / or heat source
  • possibility of expansion of the module(s) with extra (SLAVE) modules, each SLAVE module controls 6 thermostats and 24 actuators
  • maximum power of the connected actuators for the MASTER / SLAVE modules is 200W
Wired 230 Volt terminal rail powered thermostats
Room thermostat INSTAT 3L
  • programming based on weekly cycle
  • can be set for up to 6 intervals per day
  • adjusts its incorporation in the time required to warm the room
  • controls up to 15 actuators
  • floor temperature sensor included
Room thermostat RTR-E
  • analogue temperature adjustment
  • optionally available with night time temperature lowering
  • controls up to 10 actuators
Connection box EV 230
  • controls up to 6 thermostats and 14 actuators
  • optionally available with with the pump control function and pump longevity increasing system
  • factory-equipped with a fuse
  • available as EV230 PL version , equipped with a control module for circulation pump and mixing set
Wireless 230 Volt thermostats
Room thermostat INSTAT 868R
  • programming based on weekly cycle
  • can be set for up to 6 intervals per day
  • adjust its incorporation in the time required to warm the room
  • controls up to 4 (10) actuators
  • AAA 1,5V batteries included
Room thermostat INSTAT 868-r1
  • analogue temperature adjustment
  • night time temperature lowering switch
  • ability to connect room temperature sensor
  • controls up to 10 actuators
  • AAA 1,5V batteries included
Room thermostat INSTAT 868-r0
  • analogue temperature adjustment
  • controls up to 10 actuators
  • AAA 1,5V batteries included
6 channels connection box INSTAT 868-a6
  • controls up to 6 thermostats and 24 actuators
  • ability to control the operation of the circulating pump in the distributor with mixer
  • ability to define the control of selected thermostats over other thermostats (master / slave function)
  • factory-equipped with a fuse
Pumping-mixing set

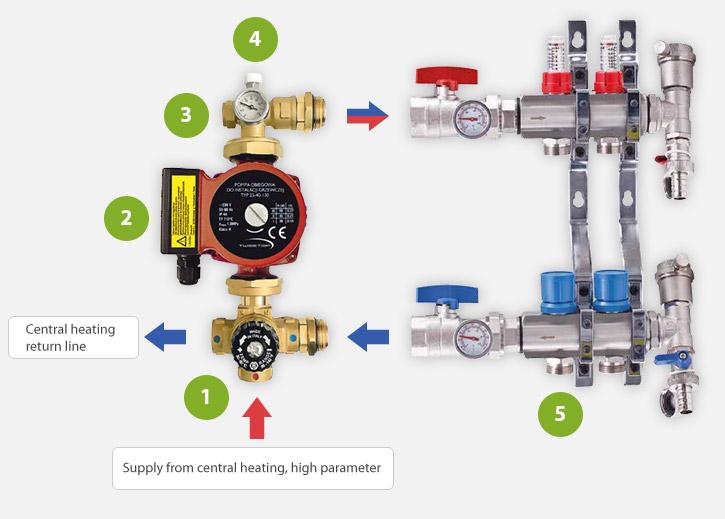

Set components
  1. Easy to install and use four-way thermostatic valve -  30-60 deg C adjustment range
  2. Simple and efficient circulation pump (Hmax-3,8m h20, Qmax=3,5m3/h)
  3. Control thermometer
  4. Manual vent
  5. Tweetop FN5C manifold
Advantages of the solution
  • Ideal for mixed heating systems (radiators combined with surface heating)
  • Small width of 120 mm, ability to rotate the pump
  • Ability to connect from the left or right side
  • User-friendly O-ring G1 connection
  • Possibility of cooperation with the Tweetop automation system and manifold
  • Tweetop FN5C series manifold
  • Pump bypass security circuit available
